The Editor Layout
The Editor is the workspace where you build, edit, and inspect your project. It opens when you click a project from the Dashboard.
The Editor is the workspace where you build, edit, and inspect your project. It opens when you click a project from the Dashboard.
Three-Column Layout
| Area | Description |
|---|---|
| Left sidebar | Tab icons along the edge, with the active panel's content beside them. 10 tabs total. |
| Center area | A tabbed container holding the Preview, code editor tabs, and spec editor tabs. |
| Inspect (optional) | Opens on the right when you click Inspect in the top bar. Shows Style and Props tabs. |
Top Bar
The top bar spans the full width of the editor:
| Element | Location | Description |
|---|---|---|
| Project menu | Top-left | App icon + project name + chevron. Opens the application menu. |
| Edit / Preview toggle | Top-center-left | Segmented control to switch between selecting elements for editing and interacting with the live app. |
| Pages dropdown | Top-center | Navigate between pages and routes in your project. |
| URL bar | Top-center | Shows the current page URL. |
| Reload | Top-center-right | Refreshes the preview. |
| Responsive buttons | Top-center-right | Resize the viewport. |
| GitHub | Top-right | Connect your project to a GitHub repo. Push and pull commits without leaving the editor. |
| Inspect | Top-right | Toggles the Inspect panel on the right side. |
| Publish | Top-right | Opens the Publish dialog. |
| User avatar | Top-right corner | Account menu. |
Left Sidebar Tabs
10 tabs organized into two groups separated by a divider:
Primary tabs: Chat, History, Elements, Specs, Integrations, Theme
Utility tabs: Files, Search, Logs, Keys
Click a tab icon to switch panels. The active panel's content fills the sidebar area.
Center Area Tabs
The center area uses a dynamic-until-pinned tabbing system (similar to VS Code):
- The Preview tab is always available
- Opening a file or spec creates a new tab
- Unpinned tabs (shown in italic) are replaced when you open something else
- Double-click a tab, start typing, or edit its content to pin it (shown in normal text)

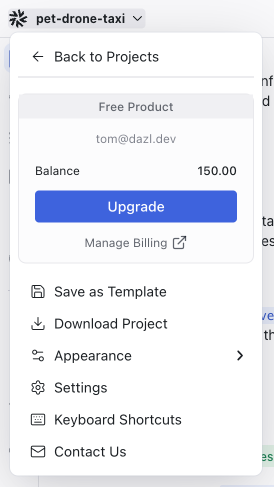

Application Menu
Click the project name in the top-left corner to open the application menu:
- Back to Projects — return to the Dashboard
- Account section — plan, email, balance, Upgrade, Manage Billing
- Save as Template — save the project as a reusable starting point
- Download Project — download the source code
- Appearance — Light / Dark / System theme for the editor UI
- Settings — project settings
- Keyboard Shortcuts — open the keyboard shortcuts reference (also available via Shift+?)
- Contact Us — support link
The Appearance setting controls the Dazl editor's theme. Your project's theme can be configured separately in the Theme panel, which can override the editor's appearance setting.
